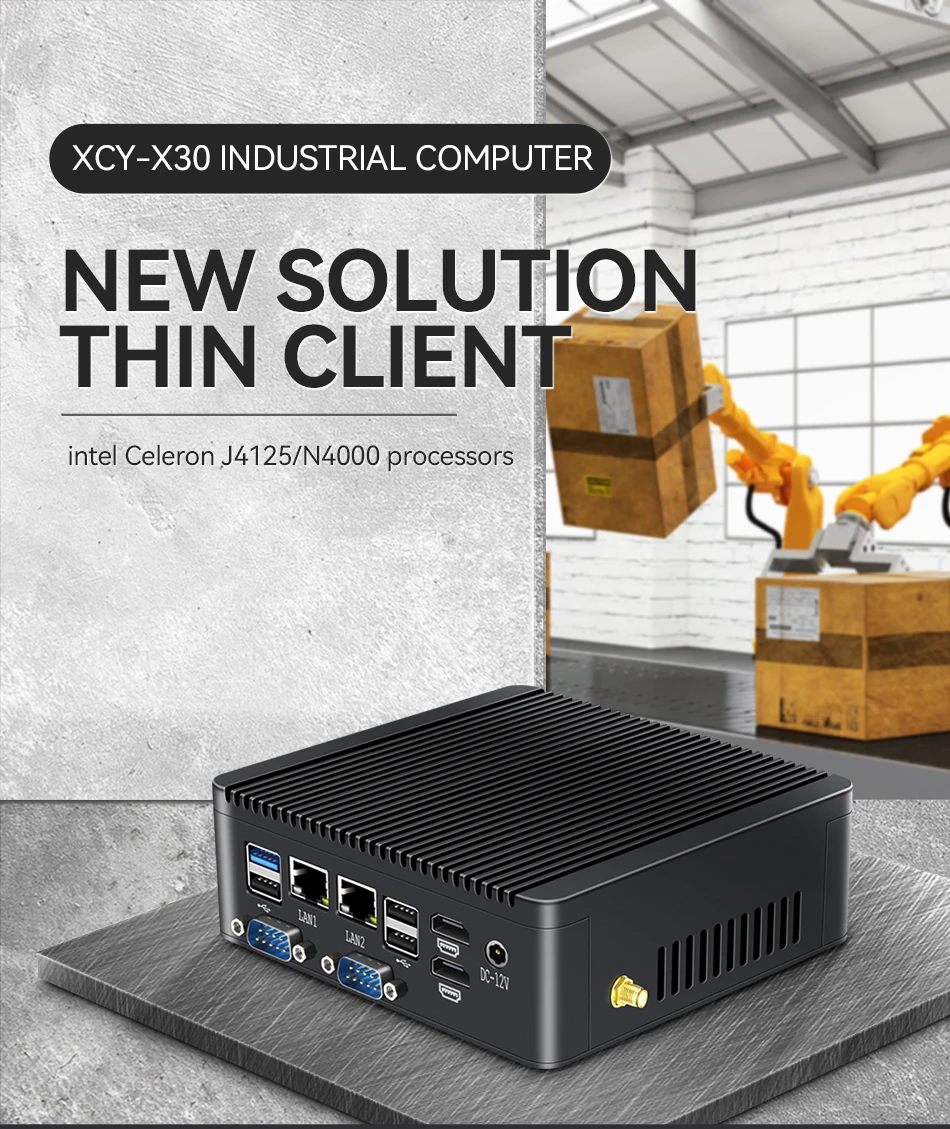

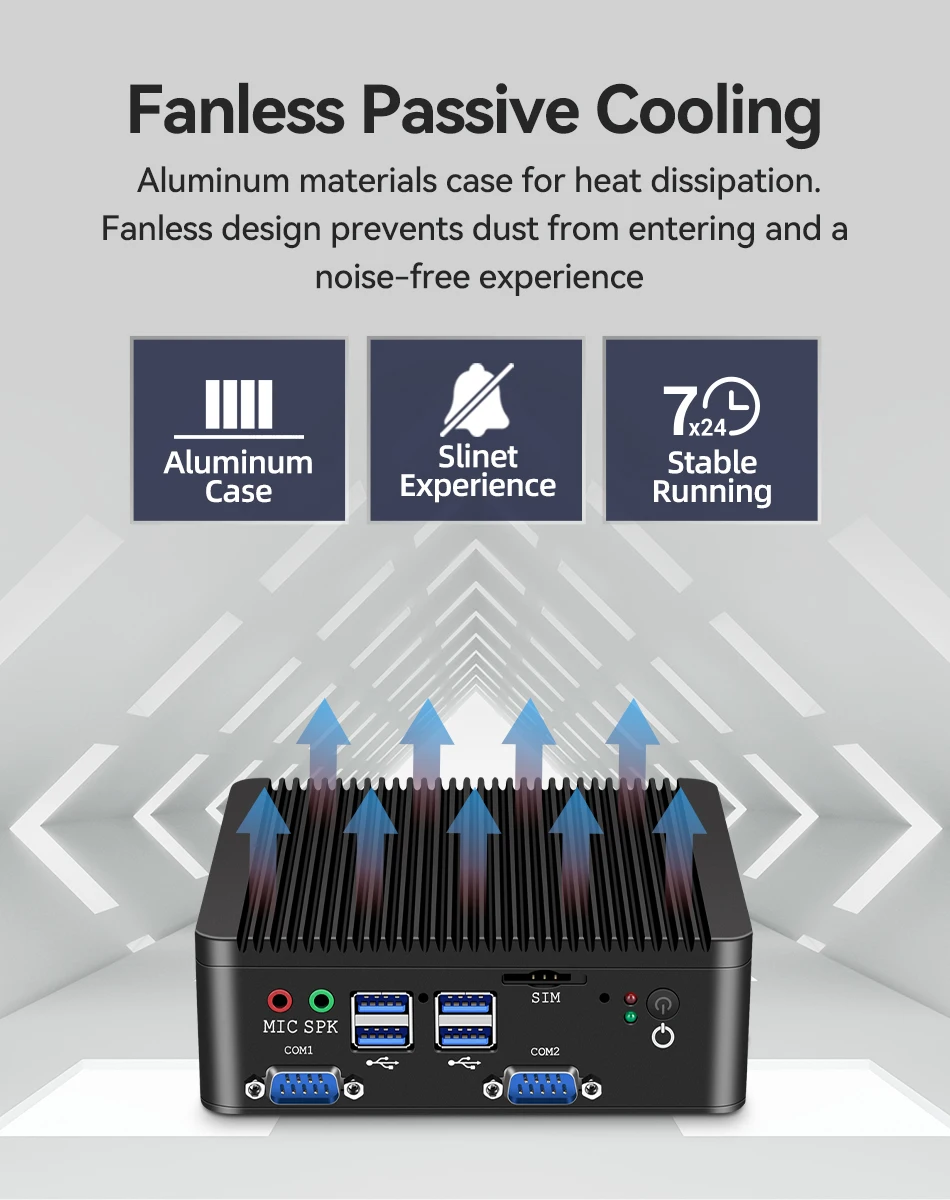

XCY-X30G-J4125/N4000
(1) Intel Celeron J4125 and N4000 processors optional
(2) 1x SODIMM-DDR4 max support 8GB
(3) Support 1x M.2 SATA SSD and 1x SATA 2.5inch
(4) Support mini PCIE to expand WiFi/Buletooth/4G LTE module
(5) Support triple display, 2x HDMI, 1x LVDS expansion
(6) 2x Gigabit Ethernet, support Wake on LAN, PXE booting

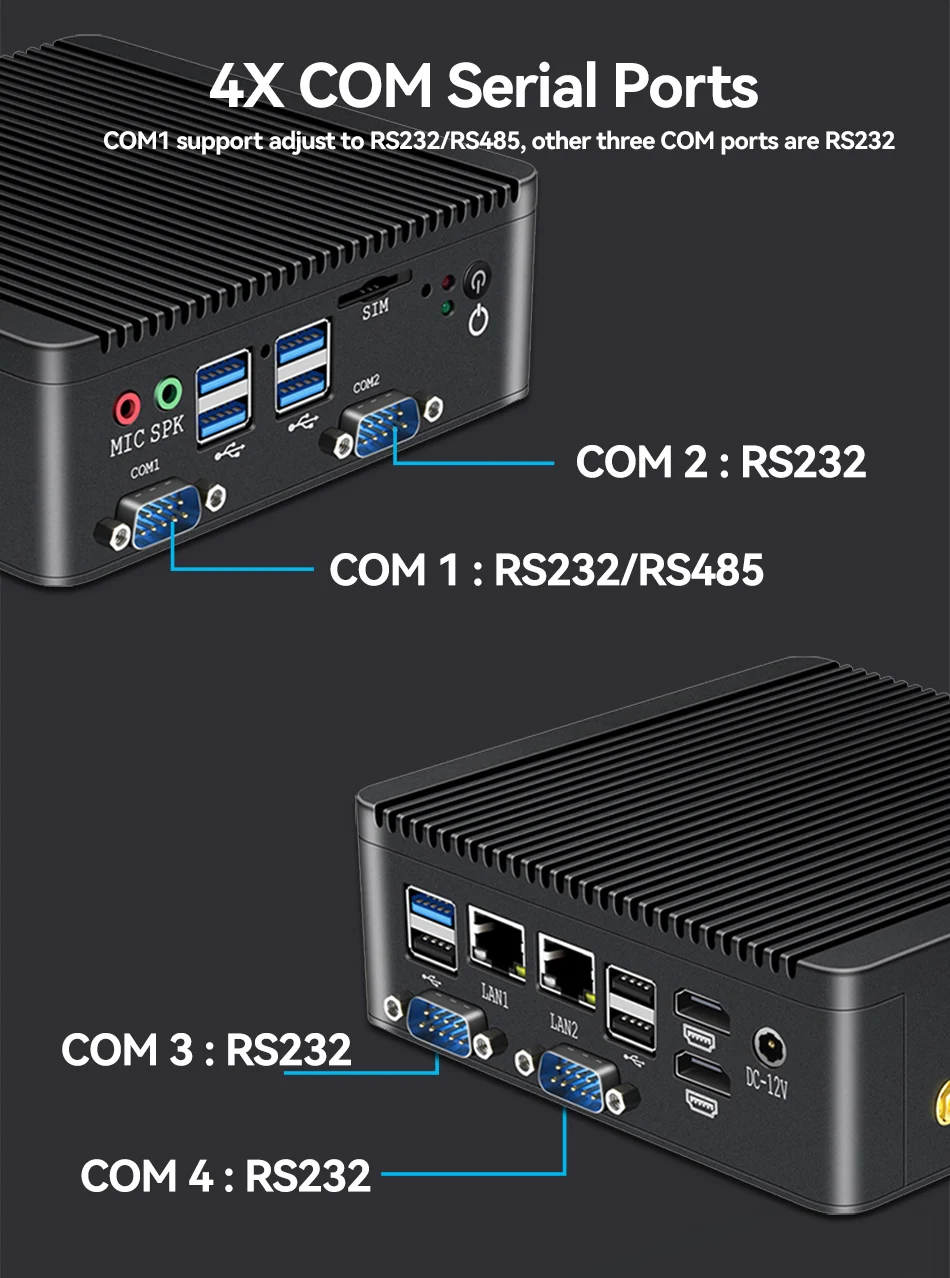

(7) GPIO, 4x COM RS232 ( COM1 support RS232/RS485 adjustable)
(8) Supprot wide voltage input 12V-19V
(9) Support windows 10, Windows 11, Linux
Specification:
Motherboard Size | NANO 120mmX120mm |
Processors | Intel® Celeron J4125 Processor 4 cores 4 threads, 2.0GHz, up to 2.70GHz
Intel® Celeron N4000 Processor 2 cores 2 threads, 1.10GHz, up to 2.60GHz |
Memory Types | 1x SO-DIMM DDR4 2133/2400MHz slot
Max support to 8GB |
|

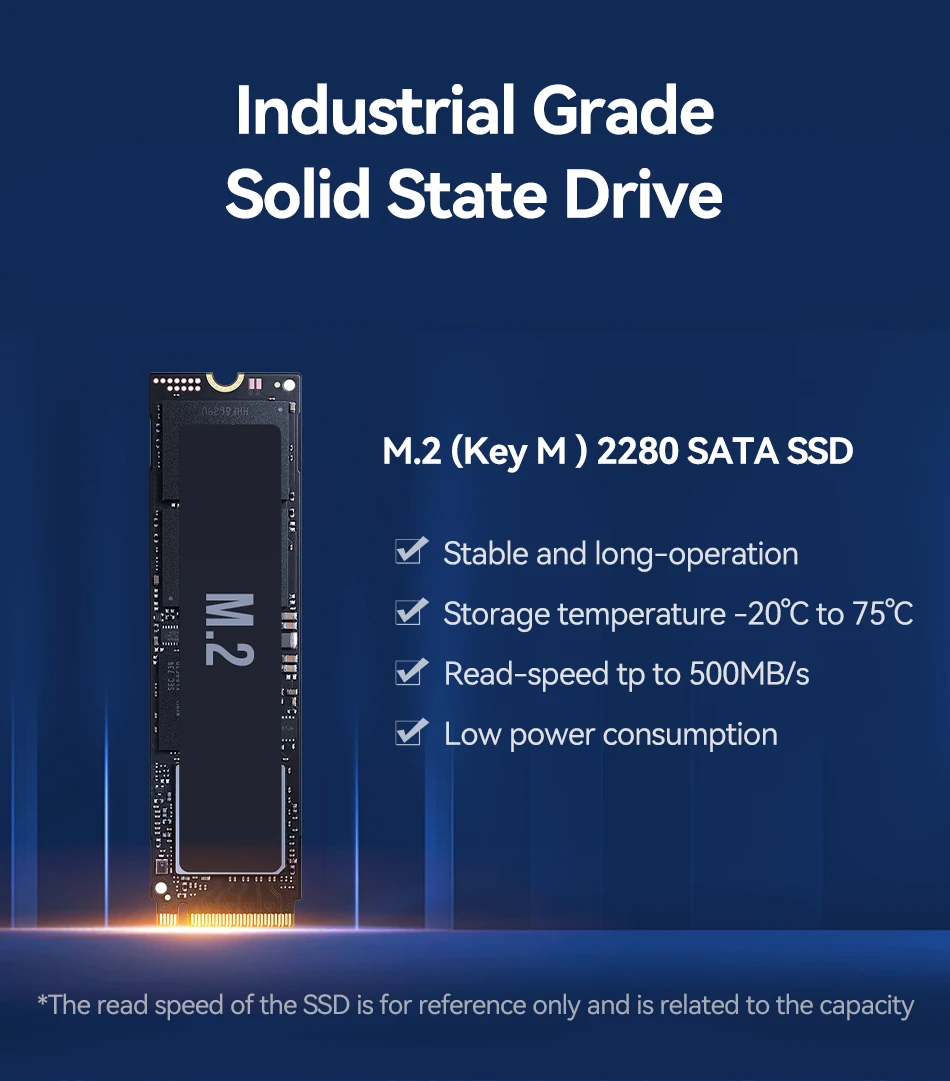

Expansion | 1 x M.2 Key M（2280mm，SATA SSD）
1 x MiniPCIe slot for Wifi/Bluetooth /4G module |
|

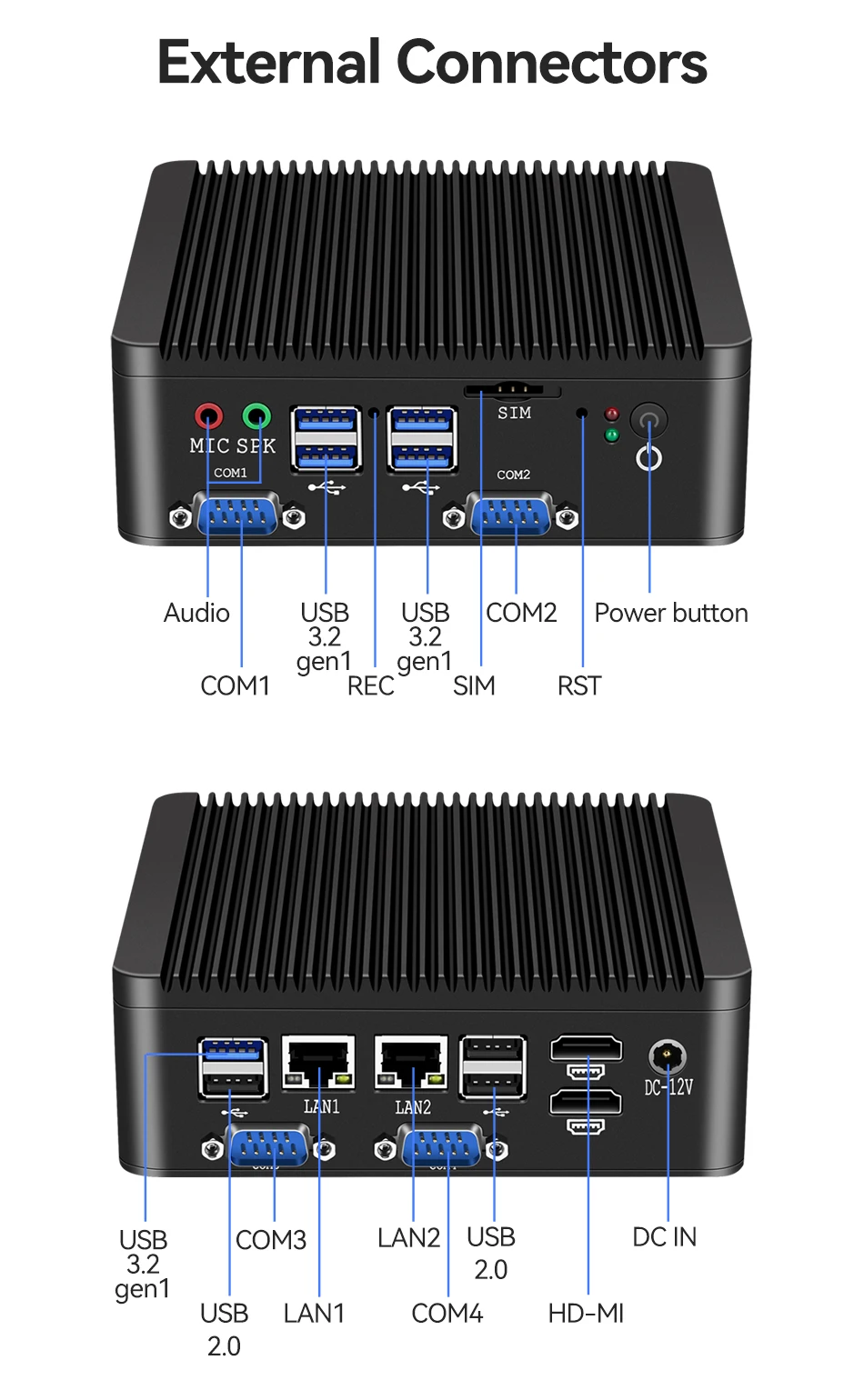

External
Connectors | 1 x DC-IN
2 x HDMI
3 x USB2.0
2 x LAN
1 x MIC-IN
1 x HP-OUT
5 x USB3.2 GEN1(5Gbps)
1 x REC (Ghost button (one-key system restore)
1 x RST (Reset button & CLR_CMOS button)
2 x LED,1 x HDD LED（red） ；1 x WIFI&4G module states（green）
1 x PWR_BT |
|
|
|
|
|
|
|
Internal
Connectors | 1 x Debug
1 x LVDS
1 x SATA_PWR
1 x SATA
1 x COM_CONN（4*COM232,COM1 support RS232/485 adjust on J1 jumper）
1 x JFP (automatic power on set up jumper)
1 x GPIO
1 x AUDIO
1 x Speaker
1 x F_USB2.0 |
|
|
|
|
|
|
BIOS | AMI BIOS |
Power Management | Supports Advanced Power Management ACPI
Support hardware real-time monitoring
Support automatic power-on |
|
|

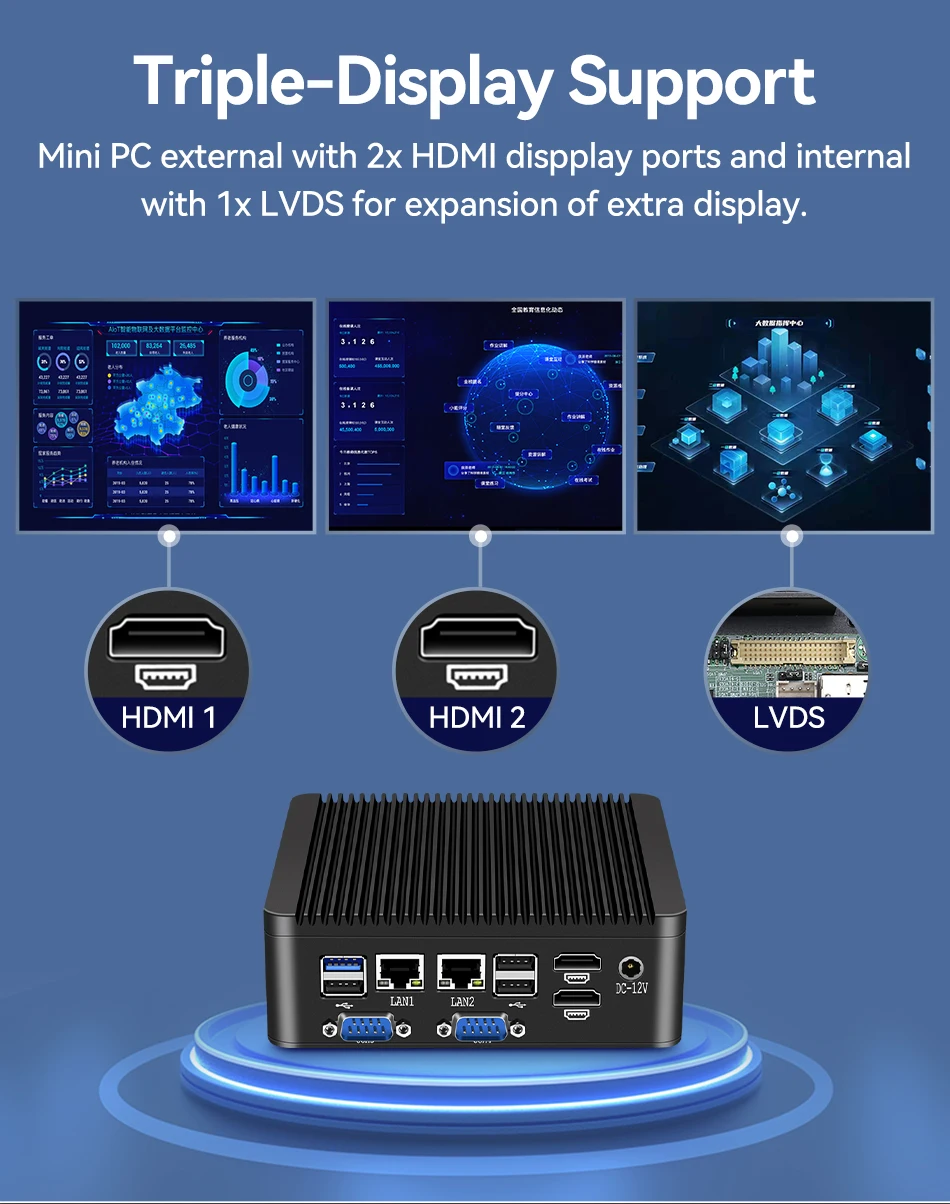

Display | Support synchronous/asynchronous triple display (HDMI1, HDMI2, LVDS3) |
Backlight
Adjustment | LVDS can support system/hardware adjustment, select adjustment method through jump cap
(default system adjustment) |
LAN | 2 x Realtek Gigabit Ethernet（RTL8111H/8111G） |
Audio | Realtek ALC662/ALC887 ；Integrated power amplifier NS4251 3W@4Ω max |
I/O Chipset | ITE8786E-I |
Power Input | DC 12-19V |
Working
Environment | Working temperature: -15℃~60℃
Ambient humidity: 0%~95% |
|
Operating System | Windows 10 / Windows 11/ Linux |
Dimension | 136 x 126x 46mm |
ATTENTION: Mini PC without 4G LTE module preinstalled, buyer need us pre-installed 4G LTE module to mini PC, please leave us message.
Item | Description |
1 | LVDS_EN | LVDS switch selection jumpers |
2 | PWM_SEL | LVDS backlight adjustment selection jumper |
3 | BKCT | LVDS control switch and brightness adjustment control socket |
4 | LVDS | LVDS screen display pin interface 2*20P |
5 | JPWR_LVDS | LVDS voltage selection jumper |
6 | SATA_PWR | SATA power pin connector |
7 | SATA | SATA interface socket |
8 | COM-CONN | Built-in serial port 4*COM |

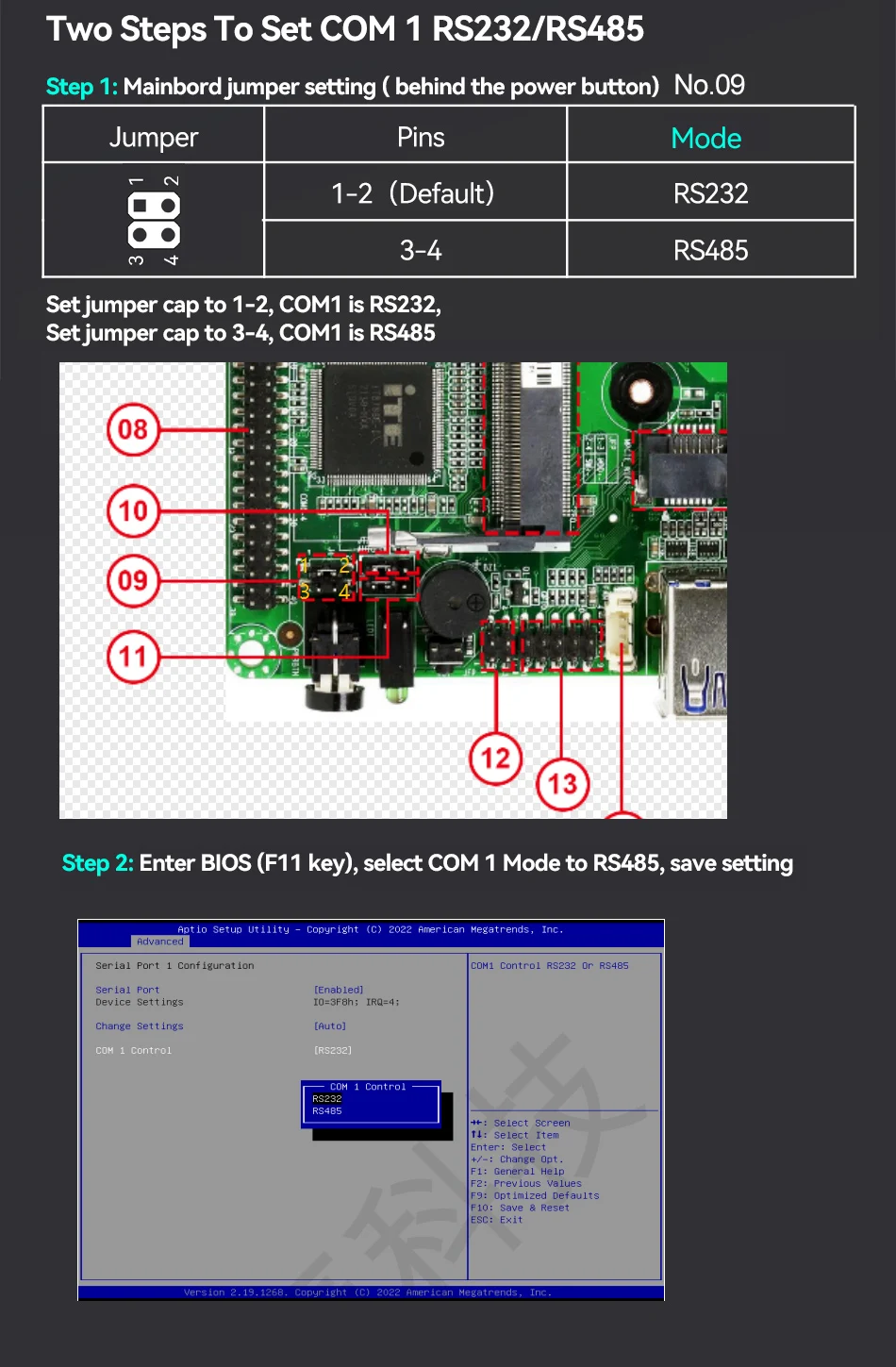

9 | J1 | RS232/RS485 signal selection jumper of COM1 |
10 | JTXE | ME flash selection jumper |
11 | AUTO_ON | Automatic power-on selection jumper |
12 | JFP | External power switch pin interface |
13 | GPIO | GPIO pin interface 10P |
14 | FAN | Cooling fan socket |
15 | F_AUDIO | Front audio pin connector |
16 | JSPK | Amplifier pin interface |
17 | PWR | Built-in power supply socket |
18 | J_RUSB3 | USB2.0 pin |
19 | M.2 SSD | M.2_SSD 2280 SATA |
20 | mPCIE | mPCIE (4G/WiFi/Bluetooth) |
21 | SO-DIMM | SO-DIMM DDR4 |
